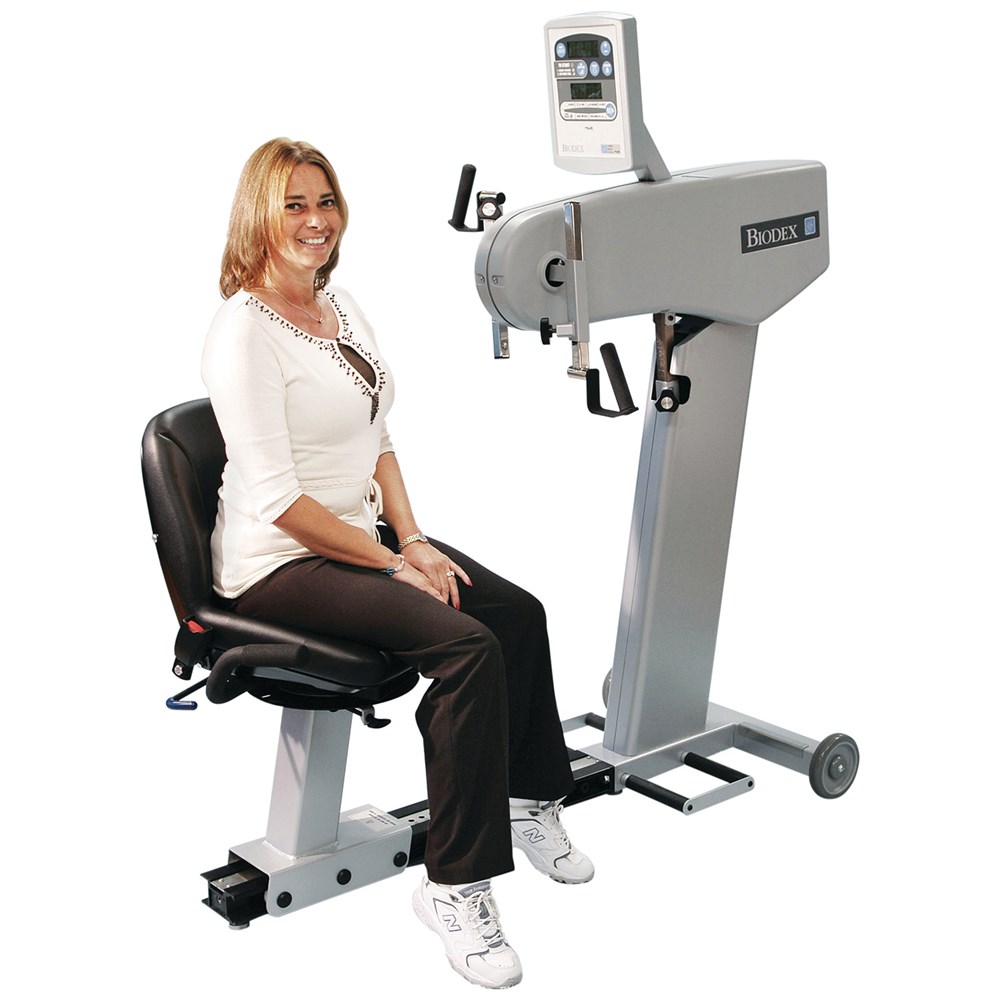

Upper Body Cycle (UBC)

The Biodex Upper Body Cycle (UBC) is a versatile ergometer that can be used in orthopedic rehabilitation, cardiac, sports medicine, wellness, or home settings.

https://atlasmedic.com/web/image/product.template/23610/image_1920?unique=fc98fe5

    This combination does not exist.

    Request Price
    Code
    103-254
    Brand
    BiodexRehab
    Origin
    United States
    Warranties
    24B
    Usage
    Man Animal
    Type
    Medical
    Class
    1
    Non Exchangeable
    Non Refundable
    Share this product

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Image
    Upper Body Cycle (UBC)
    Add to Cart

    • Weight: 107 kg (235 lb)

    • User capacity: 227 kg (500 lbs)

    • Dimensions:  162 cm (64") x 74 cm (29") x 157 cm (62")

    • Crank Axle Height: 94cm (37 ") to 147cm (58")

    • Crank arm length: 15cm (6 ") to 41cm (16")

    • Resistance: Isokinetic (speed control): 15 speed settings (5 degree / sec increments)

    • Working rate range: up to 600 watts (120 rpm)

    • Speed control range: 50 to 120 degree / sec

    • Display: time, speed, watts, calories, MET, heart rate, total work, total cycles

    • Heart rate monitoring: compatible with telemetry

    • Communication: RS232

    • Power: self-powered, self-charging and wireless

    An upper body ergometer that will exercise people with limited lower body function

    Contact us and find out how the Upper Body Cycle can help you.

    QUOTATION

    THE RELIABLE AND VERSATILE ERGOCYCLE

    Functional diversity

    The Biodex Upper Body Cycle is a versatile ergometer that meets the requirements of any orthopedic, cardiac, sports medicine, wellness or general conditioning program. It will exercise people with limited lower body function, help rehabilitate a wide variety of patients in the shoulders, back, neck, wrists and elbows, and give healthy athletes a grueling workout.

    Unique self-feeding system

    Use the upper body cycle anywhere. There is no need for alternating current at working rates greater than or equal to 30 watts and 50 rpm. The battery-powered system retains all settings and LED displays before and after cycling. The internal battery recharges automatically when working rates reach or exceed 30 watts and 50 rpm. An AC adapter is provided for extended use at working rates below 30 watts and 50 rpm.

    User-friendly

    The "Quick start" function allows your novice cyclists to get started on their exercises. Isokinetic (speed control) provides adequate resistance over the rider's full range of motion for the duration of the exercise period. Resistance continuously matches effort, adjusting to variations in patient strength due to weakness or pain at specific points in the individual's range of motion, and fatigue during of the cycling period. With a selection of 15 speeds (50 to 120 degrees / sec), this resistance mode maximizes strength gains while minimizing the risk of injury.

    Retro-cycling all functions

    Rehabilitation and conditioning capabilities are extended by providing bi-directional cycling to alternately work reciprocal muscle groups.

    Designed for high usage environments

    Heavy gauge welded steel frame, epoxy powder coated finish and moisture resistant ABS plastic housing complete a rugged and durable design that will stand up to heavy use in the busiest environments. Large wheels facilitate transport and repositioning. Heart rate monitoring can be performed with a telemetric chest strap to track heart rate without interrupting exercise - useful for protocols using target heart rate and for monitoring high risk patients.

    Versatility and marketability

    The Upper Body Cycle ergocycle offers:

    • Self-powered, self-charging and wireless capability - use it anywhere

    • Swivel actuator - accommodates a wide range of cycling positions

    • Adjustable crank length to help control the range of motion provided for a variety of arm and upper body exercises

    • Instant back-cycling

    • Working frequency range of up to 600 watts to suit a wide range of patients

    • Isokinetic resistance - (speed control) to build strength

    • Heart rate monitoring - Compatible with telemetry to ensure proper training intensity

    • Easy to use 'Quick-Start' control panel - with large buttons

    • Large, easy-to-view LED display

    • Ergonomically correct for patients between 4'6 '' and 6'10 '' tall and weighing up to 500 lbs

    • Removable seat for wheelchair or standing accesst

    • Comfortable rotating seat with seat belt and grab handles - easy wheelchair transfers - belt and handles provide added safety, especially for patients with balance impairment or paralysis

    • EZ-Grip ™ handles allow patients with manual control limitations to hook onto the cranks

    Upper body rehabilitation, strengthening and conditioning for all shoulder, back, neck, wrist and elbow patients.


    Warm Up: Provides an excellent warm up before all upper body exercises.

    ACL: Allows patients with early stage ACL to perform cardiovascular activities.

    Throwing Athlete: Place patient next to UBC in a 90 ° / 90 ° position and rotate internally / externally against bidirectional isokinetic resistance.

    Carpal tunnel syndrome: Excellent warm-up before activities.

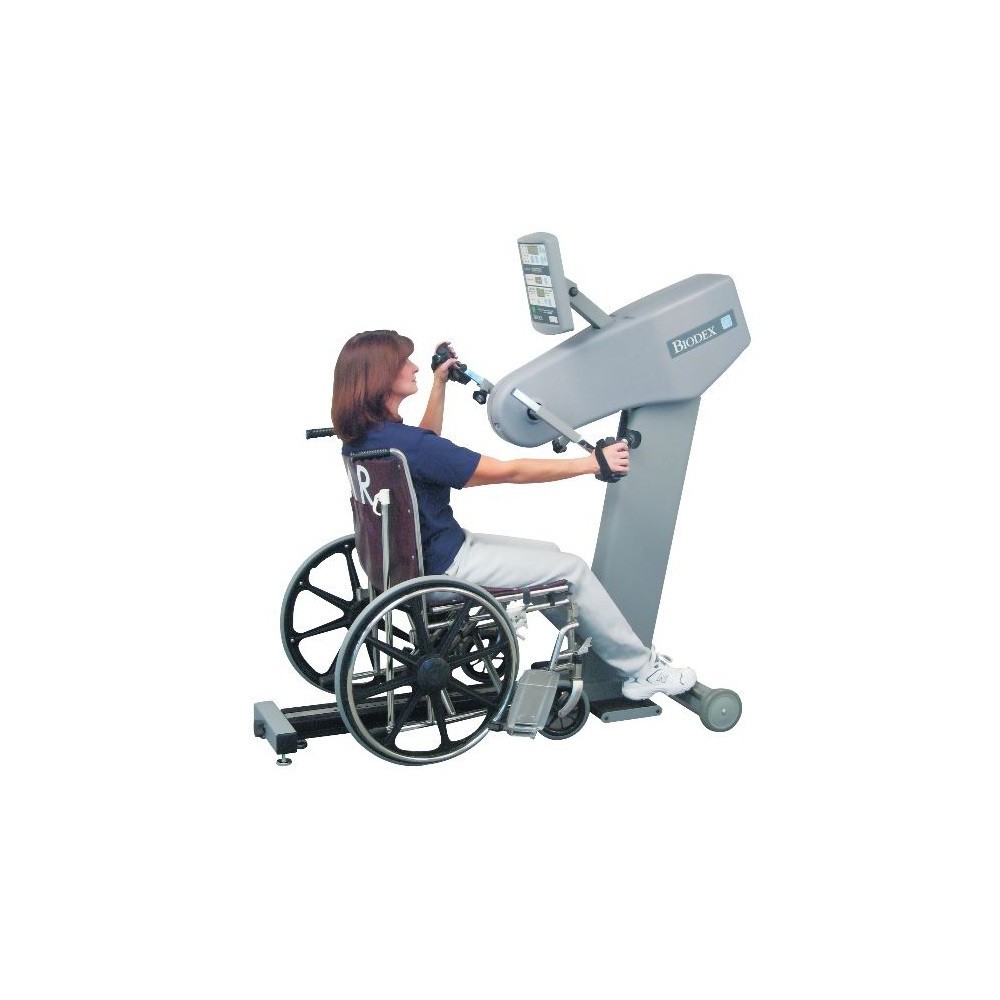

    Wheelchair patients: The low seat height makes it easy to transfer from the wheelchair or the seat can be fully removed to allow exercise while still in the wheelchair. The adjustable swivel actuator easily adapts to all wheelchair patients.

    Radial Head Fracture: Start the patient with the actuator set in the low position, thereby decreasing elbow flexion. As the ROM increases, lift the actuator to increase the elbow extension.

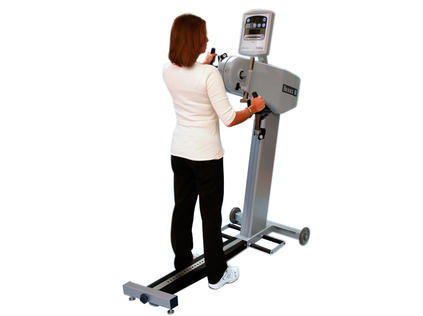

    Lumbar Sprain / Strain: Begin with the patient seated against the back of the seat providing lumbar support, progress to the front edge requiring more lumbar stability, then stand in a neutral spine which requires full lumbar stabilization.

    Rotator Cuff Repair: Begin immediately with ROM shoulder exercises below 90 degrees of shoulder flexion.

    Total Hip and Knee Arthroplasties: Cycle of the upper body to prevent deconditioning of the elderly patient.

    Cardiac patients: Allows the use of smaller muscle groups and strengthening of the chest muscles after open heart surgery. Maintains cardiovascular health in patients with debilitating injury or paralysis of the lower extremities.







    Odoo - Echantillon n°1 pour trois colonnes

    Convivial

    La fonction «Démarrage rapide» permet à vos cyclistes novices de se lancer dans leurs exercices.  Isocinétique (contrôle de la vitesse) offre une résistance adaptée sur toute l'amplitude de mouvement du cycliste pendant toute la durée de la période d'exercice.  La résistance correspond en permanence à l'effort, s'adaptant aux variations de la force du patient en raison de la faiblesse ou de la douleur à des points spécifiques de l'amplitude des mouvements de l'individu, et de la fatigue au cours de la période de cyclisme.  Avec une sélection de 15 vitesses (50 à 120 degrés / sec), ce mode de résistance maximise les gains de force tout en minimisant les risques de blessures.

    Odoo- Echantillon n° 2 pour trois colonnes

    Auto-alimentation unique

    Utilisez le cycle du haut du corps n'importe où.  Il n'y a pas besoin de courant alternatif à des taux de travail supérieurs ou égaux à 30 watts et 50 tr / min.  Le système à batterie conserve tous les paramètres et les affichages LED avant et après le cyclisme.  La batterie interne se recharge automatiquement lorsque les cadences de travail atteignent ou dépassent 30 watts et 50 tr / min.  Un adaptateur secteur est fourni pour une utilisation prolongée à des taux de travail inférieurs à 30 watts et 50 tr / min.

    Odoo- Echantillon n° 3 pour trois colonnes

    Durabilité

    Conçu pour les environnements à forte utilisation.  Le cadre en acier soudé de gros calibre, la finition à revêtement en poudre époxy et le boîtier en plastique ABS résistant à l'humidité complètent une conception robuste et durable qui résistera à une utilisation intensive dans les environnements les plus fréquentés.  Les grandes roues facilitent le transport et le repositionnement.  La surveillance de la fréquence cardiaque peut être réalisée avec une sangle pectorale télémétrique pour suivre la fréquence cardiaque sans interrompre l'exercice - utile pour les protocoles utilisant la fréquence cardiaque cible et pour la surveillance des patients à haut risque.



    Voici notre sélection de documents

    Apprenez-en plus sur l'ergocycle Upper Body Cycle

    Fiche technique

    Upper Body Cycle  - EN

    Manuel d'utilisation

    Manuel d'utilisation - EN
